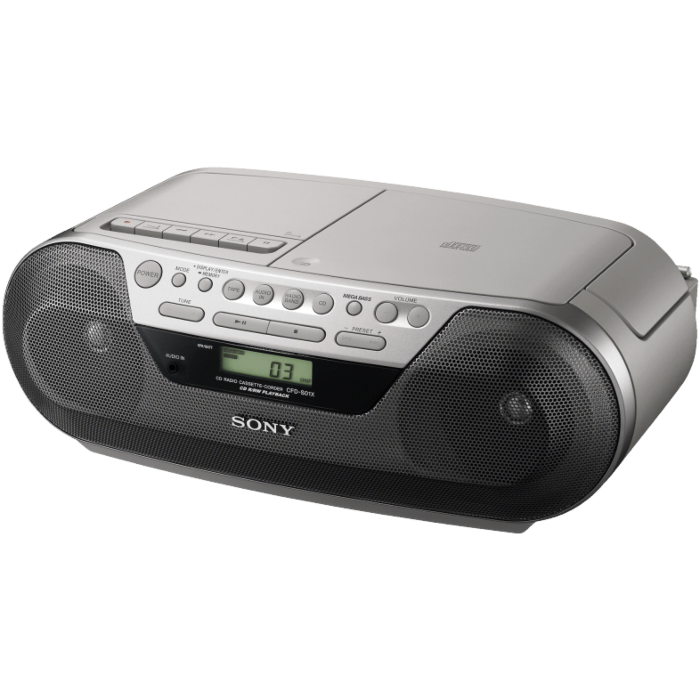

Sony CD Radio Cassette Recorder CFDS05CD

• Amplifier Function

  • CD : Player

Audio

• Tape Operation : Single Stereo Cassette (fast winding) Approx. 150 sec. with Sony C-60 cassette
• Digital-to-Analog Converter : 1 Bit
• Tuner Type : Digital
• Frequency Response : CD: 20-20000Hz (+1/-2dB) Cassette: TYPE I (normal), 80-10000Hz
• Tape System : 4 Track, 2 Channel Stereo Cassette
• Audio Format(s) Supported : CD-R/RW Playback Compatibility1

Capability

• Tape Cassette : Player, Cassette Recorder
• Radio : AM, FM

General

• Type of Use : Portable Boombox
• Tray Type : Flat Loading, Single CD
• Disc Capacity : 1

Hardware

• Display : LCD

Inputs and Outputs

• DC-In : 1
• Input(s) : Audio in Jack (stereo mini jack)
• Output(s) : Headphone Jack (stereo mini jack), for 16-32 Ohm impedence headphones
• Headphone Input(s) : 1

Power

• Power Requirements : AC 120V, 60Hz
• Battery Type : Unit: "C" x 6 (optional)
• Battery Life (Approx) : FM Recording: Sony R14P: Approx. 4.5 hours
  Sony Alkaline batteries LR14: Approx. 19 hours; Tape Playback: Sony R14P: Approx. 2.5 hours
  Sony Alkaline batteries LR14: Approx. 13 hours; CD Playback: Sony R14P: Approx. 1.0 hours
  Sony Alkaline batteries LR14: Approx. 8 hours
• Power Handling Capacity : With 3.2-ohm loads, both channels driven from 100-10000Hz; rated 1.7W per channel minimum RMS power, with no more than 10% total harmonic distortion in AC operation.
• Power Consumption (in Operation) : AC 13 Watts
• Output Power : 3.4W Total (1.7W + 1.7W (at 4 ohms, 10% harmonic distortion))

Speaker

• Speaker System : Built-In Stereo
• Speaker Dimensions : 3 1/4" (8 cm), 4 Ohm cone type x 2
• Tuning : Auto Scan Radio
• Sound Enhancer : Mega Bass®
• CD Play Mode(s) : Program, Shuffle, Repeat, 20 Track RMS Programming

• TAPE Deck General

  • CD Syncro Recording : Synchronized CD/Cassette Dubbing

Tuner

• Tuner Audio

  • Preset Channel : 30 presets total (10 AM, 20 FM)

• Tuner Audio Features

  • External Antenna : AM: Built-in Ferrite Bar Antenna; FM: Telescopic Antenna
  • Band : AM: 530-1710kHz; FM: 87.5-108.0MHz

Weights and Measurements

• Dimensions (Approx.) : 14 3/8 x 5 3/8 x 9 1/8" (365 x 134 x 230mm w/h/d)
• Weight (Approx.) : 5 lb 15 oz (2.7 kg)
