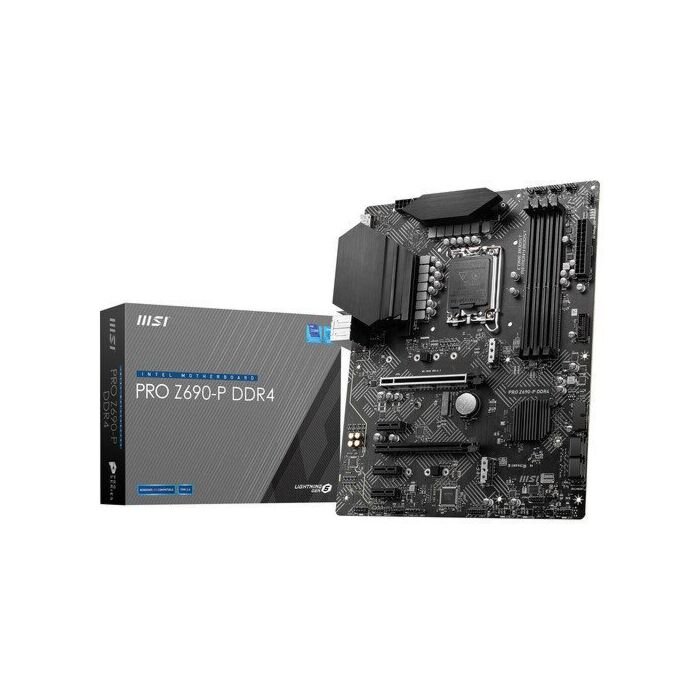

MSI PRO Z690-P DDR4 LGA 1700 ATX Motherboard Price in Pakistan Specs
CPU
| Chipset | Intel Z690 |
| CPU Socket | LGA 1700 |
Back Panel I/O
| USB | 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 2.0) 1 x USB-C (USB 3.2 Gen 2×2) |
| Thunderbolt | None |
| Display | 1 x HDMI 1.4bOutput 1 x DisplayPort 1.4Output |
| Audio | 1 x S/PDIF 5 x 1/8″ / 3.5 mm |
| Ethernet / Controller | 1 x Realtek RTL8125BG 2.5Gigabit |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
| Optane Memory Support | Yes |
| RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1 (M.2) |
Internal I/O
| Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Multi-GPU Support | AMD CrossFireX |
| Air Cooling | 1 x 4-Pin CPU 4 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 2 x RGB |
| Diagnostics | Clear CMOS |
| Add-On | 1 x Thunderbolt Header |
Front Panel I/O
| I/O Connection Headers | AAFP |
Audio
| Audio Codec | Realtek ALC897 (7.1-Channel) |
Wireless
| Bluetooth | None |
| Wi-Fi | None |
| Module Support | 1 E Key M.2 |
Software
| OS Compatibility | Windows 10 Windows 11 *As of December, 2021: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor | ATX |
| Dimensions | 12 x 9.6″ / 30.5 x 24.4 cm |
Packaging Info
| Package Weight | 2.895 lb |
| Box Dimensions (LxWxH) | 14.1 x 10.6 x 2.6″ |
