| Brand | MSI |
|---|---|

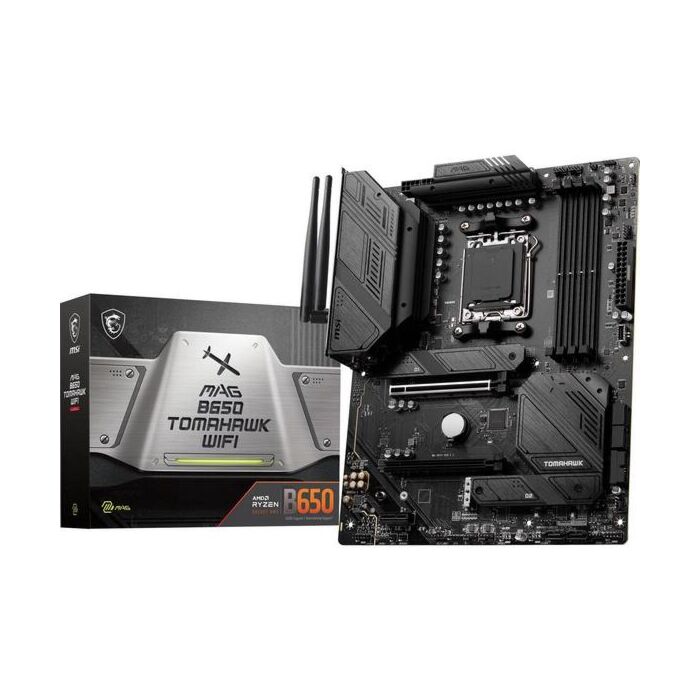

| Model | MAG B650 TOMAHAWK WIFI |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Supports AMD Ryzen 7000 Series Desktop Processor |
| Chipset | AMD B650 |
|---|---|
| South Bridge | Supports 4 DIMMs, Dual Channel DDR5-5600+ (OC) |
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Supports non-ECC, un-buffered memory Supports ECC UDIMM memory (non-ECC mode) |
| PCI Express 4.0 x16 | 2x PCIe x16 slots Supports x16/x2 PCI_E1 slot (From CPU) – Supports up to PCIe 4.0 x16 PCI_E2* (From B650 chipset) – Supports up to PCIe 4.0 x2
* PCI_E2 & M2_3 share the bandwidth. PCI_E2 will run at x2 speed and M2_3 will run at x2 speed when installing devices in both slots. |
|---|---|
| PCI Express x1 | 1x PCIe x1 slot PCI_E3 slot (From B650 chipset) – Supports up to PCIe 3.0 x1 |
| SATA 6Gb/s | 6x SATA 6Gb/s ports (From B650 chipset) – SATA_1_2/ SATA_3_4 (From B650 chipset) – SATA_A1_A2 (From ASM1061) |
|---|---|
| M.2 | 3 x Key M (PCIe) + 1 x Key E (WiFi/BT)
3x M.2 slots (Key M) * M2_3 & PCI_E2 share the bandwidth. M2_3 will run at x2 speed and PCI_E2 will run at x2 speed when installing devices in both slots. |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1 & SATA_A2 do not support RAID function. |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1x Realtek 8125B 2.5Gbps LAN controller |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | AMD Wi-Fi 6E RZ616 – The Wireless module is pre-installed in the M.2 (Key-E) slot – Supports MU-MIMO TX/RX – Supports 20MHz, 40MHz, 80Mhz, 160Mhz bandwidth in 2.4GHz/ 5GHz or 6GHz bands* – Supports 802.11 a/ b/ g/ n/ ac/ ax
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 21H1 and Windows 11. |
| Bluetooth | Supports Bluetooth 5.2* * Bluetooth 5.2 will be ready in Windows 10 21H1 and Windows 11. |
| Back I/O Ports | 1x Flash BIOS button 1x DP port 1x HDMI port 3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU) 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From B650 chipset) 4x USB 3.2 Gen 1 5Gbps Type-A ports (From B650 chipset) 2x USB 2.0 Type-A ports (From B650 chipset) 1x LAN (RJ45) jack 2x Wi-Fi Antenna connectors 5x audio jacks 1x Optical S/PDIF Out connector |
|---|
| Onboard USB | 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector – Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 connectors – Supports additional 4 USB 2.0 ports |
|---|---|
| Other Connectors | Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin System fan connectors
System Connectors Jumpers LED Features |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1x 24-pin ATX main power connector 2x 8-pin EPS 12V power connectors |
| Windows 11 | Supported |
|---|
| Features | MSI Center Features – Gaming Mode – Smart Priority – Game Highlights – Mystic Light – Ambient Link – Frozr AI Cooling – User Scenario – True Color – Live Update – Hardware Monitoring – Super Charger – Devices Speed Up – Smart Image Finder – MSI Companion – System Diagnosis
Thermal Features Performance DIY Friendly RGB Support BIOS Features |
|---|
