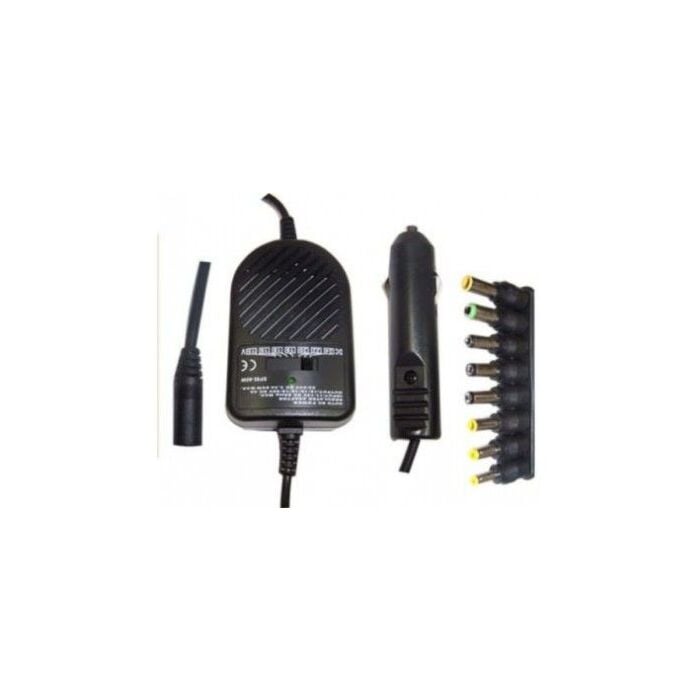

This high power DC adaptor is designed to power the popular brand notebook computers which require DC input from 15V to 24V while you are travelling in the car.
·· The adaptor features overload and short circuit protection to protect it from damage.
·· Stabilized output, low ripple & low interference.
·· Adjustable output voltage
·· Power LED monitor.
Voltage selection
· Determine proper output voltage setting. Check rating plate and the voltage indication marked next to the input jack on your computer. You may find the voltage in your AC adaptor or in the computer user' s manual.
· Set the voltage switch on the body of the adaptor in the proper voltage.
TIP polarity selection
· Determine connector connector size.As the tip is aptitude .The positive tip polarity tip is always as following.
·Insert connector output plug into your computer.
· Inster adaptor into vehicle linter socket .Green LED will ling to indicate proper operation.If LED Fails to light.See FUSE REPLACEMENT.
·Turn on computer .If it does not operate,immediately disconnect and review the above steps.
Specification
- Input: DC 11-14 Volts.
- Output: DC 15/16/18/19/20V 4A max
- DC 22/24V 3.3A 80W max
- Fuse for overload protection.(10AMP).
- Size:27x17x 5cm, 113cm for the cable length.
- Weight: 234g.
