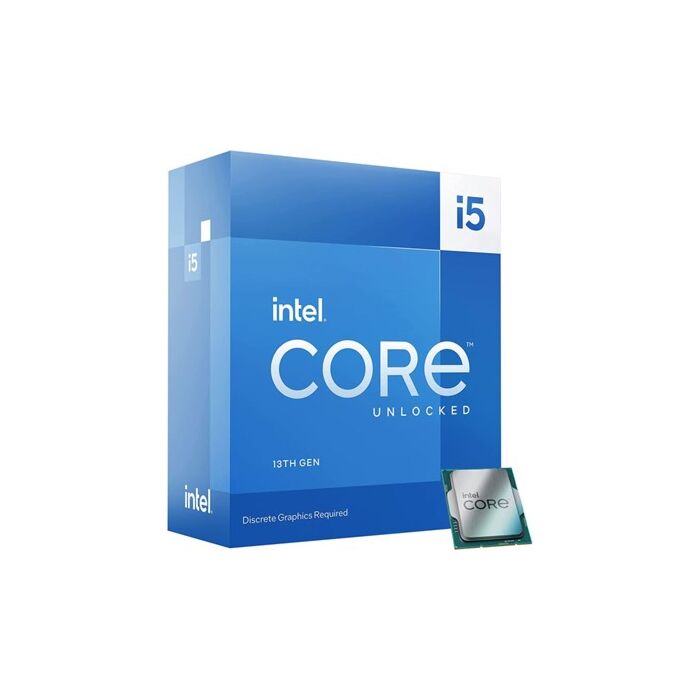

Intel 13th Generation Core i5 - 13600KF (2.6 Ghz Turbo Boost upto 5.1 Ghz, 24MB Intel Smart Cache) Processor

CPU Specifications

• Total Cores14
• # of Performance-cores6
• # of Efficient-cores8
• Total Threads20
• Max Turbo Frequency5.10 GHz
• Performance-core Max Turbo Frequency5.10 GHz
• Efficient-core Max Turbo Frequency3.90 GHz
• Performance-core Base Frequency3.50 GHz
• Efficient-core Base Frequency2.60 GHz
• Cache24 MB Intel® Smart Cache
• Total L2 Cache20 MB
• Processor Base Power125 W
• Maximum Turbo Power181 W

Supplemental Information

• Marketing Status Launched
• Launch DateQ4'22
• Embedded Options AvailableNo
• Datasheet View now

Memory Specifications

• Max Memory Size (dependent on memory type)128 GB
• Memory Types Up to DDR5 5600 MT/s
  Up to DDR4 3200 MT/s
• Max # of Memory Channels2
• Max Memory Bandwidth89.6 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision4.0
• Max # of DMI Lanes8
• Scalability1S Only
• PCI Express Revision5.0 and 4.0
• PCI Express Configurations ^‡Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes20

Package Specifications

• Sockets SupportedFCLGA1700
• Max CPU Configuration1
• T_JUNCTION100°C

Advanced Technologies

• Intel® Gaussian & Neural Accelerator3.0
• Intel® Thread Director Yes
• Intel® Deep Learning Boost (Intel® DL Boost) Yes
• Intel® Speed Shift Technology Yes
• Intel® Turbo Boost Max Technology 3.0 ^‡No
• Intel® Turbo Boost Technology ^‡2.0
• Intel® Hyper-Threading Technology ^‡Yes
• Intel® 64 ^‡Yes
• Instruction Set64-bit
• Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States Yes
• Enhanced Intel Speed Step® Technology Yes
• Thermal Monitoring Technologies Yes
• Intel® Volume Management Device (VMD)Yes

Security & Reliability

• Intel® Standard Manageability (ISM) ^‡Yes
• Intel® Control-Flow Enforcement Technology Yes
• Intel® AES New Instructions Yes
• Secure Key Yes
• Intel® OS Guard Yes
• Execute Disable Bit ^‡Yes
• Intel® Boot Guard Yes
• Mode-based Execute Control (MBEC)Yes
• Intel® Virtualization Technology (VT-x) ^‡Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ^‡Yes
• Intel® VT-x with Extended Page Tables (EPT) ^‡Yes
