- Product Collection13th Generation Intel® Core™ i5 Processors
- Code NameProducts formerly Raptor Lake
- Vertical SegmentDesktop

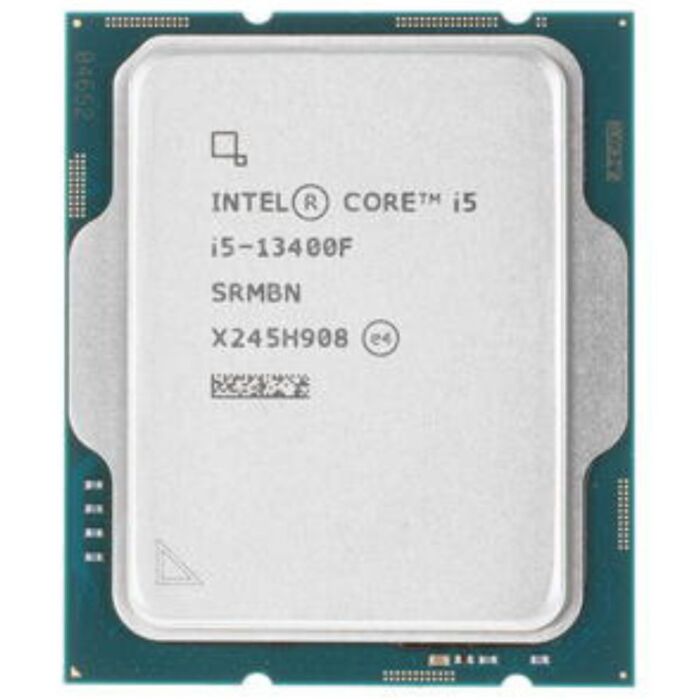

- Processor Numberi5-13400F
- LithographyIntel 7
- Use ConditionsPC/Client/Tablet
CPU Specifications
- Total Cores10
- # of Performance-cores6
- # of Efficient-cores4
- Total Threads16
- Max Turbo Frequency4.60 GHz
- Performance-core Max Turbo Frequency4.60 GHz
- Efficient-core Max Turbo Frequency3.30 GHz
- Performance-core Base Frequency2.50 GHz
- Efficient-core Base Frequency1.80 GHz
- Cache20 MB Intel® Smart Cache
- Total L2 Cache9.5 MB
- Processor Base Power65 W
- Maximum Turbo Power148 W
Supplemental Information
- Marketing StatusLaunched
- Launch DateQ1'23
- Embedded Options AvailableNo
- DatasheetView now
Memory Specifications
- Max Memory Size (dependent on memory type)192 GB
- Memory TypesUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s - Max # of Memory Channels2
- Max Memory Bandwidth76.8 GB/s
Expansion Options
- Direct Media Interface (DMI) Revision4.0
- Max # of DMI Lanes8
- Scalability1S Only
- PCI Express Revision5.0 and 4.0
- PCI Express Configurations ‡Up to 1x16+4, 2x8+4
- Max # of PCI Express Lanes20
Package Specifications
- Sockets SupportedFCLGA1700
- Max CPU Configuration1
- Thermal Solution SpecificationPCG 2020C
- TJUNCTION100°C
- Package Size45.0 mm x 37.5 mm
Advanced Technologies
- Intel® Gaussian & Neural Accelerator3.0
- Intel® Thread DirectorYes
- Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes
- Intel® Speed Shift TechnologyYes
- Intel® Turbo Boost Max Technology 3.0 ‡No
- Intel® Turbo Boost Technology ‡2.0
- Intel® Hyper-Threading Technology ‡Yes
- Intel® 64 ‡Yes
- Instruction Set64-bit
- Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle StatesYes
- Enhanced Intel SpeedStep® TechnologyYes
- Thermal Monitoring TechnologiesYes
- Intel® Volume Management Device (VMD)Yes
Security & Reliability
- Intel® Standard Manageability (ISM) ‡Yes
- Intel® Control-Flow Enforcement TechnologyYes
- Intel® AES New InstructionsYes
- Secure KeyYes
- Intel® OS GuardYes
- Execute Disable Bit ‡Yes
- Intel® Boot GuardYes
- Mode-based Execute Control (MBEC)Yes
- Intel® Virtualization Technology (VT-x) ‡Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
