Product Collection
Code Name
Vertical Segment
Desktop
Processor Number

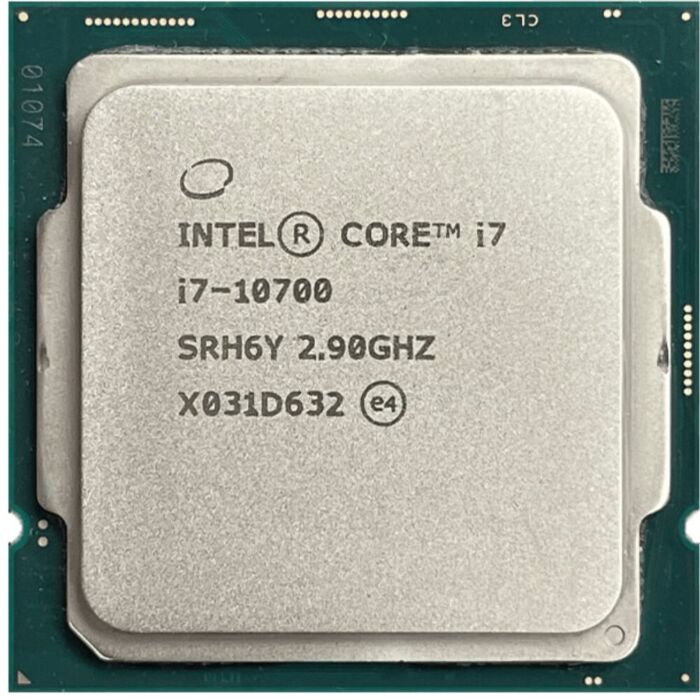

i7-10700
Lithography
14 nm
Recommended Customer Price
$355.00-$365.00
Use Conditions
PC/Client/Tablet
CPU Specifications
Total Cores
8
Total Threads
16
Max Turbo Frequency
4.80 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡
4.80 GHz
Intel® Turbo Boost Technology 2.0 Frequency‡
4.70 GHz
Processor Base Frequency
2.90 GHz
Cache
16 MB Intel® Smart Cache
Bus Speed
8 GT/s
TDP
65 W
Supplemental Information
Marketing Status
Launched
Launch Date
Q2'20
Embedded Options Available
No
Datasheet
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-2933
Max # of Memory Channels
2
Max Memory Bandwidth
45.8 GB/s
ECC Memory Supported ‡
No
GPU Specifications
Processor Graphics ‡
Intel® UHD Graphics 630
Graphics Base Frequency
350 MHz
Graphics Max Dynamic Frequency
1.20 GHz
Graphics Video Max Memory
64 GB
4K Support
Yes, at 60Hz
Max Resolution (HDMI)‡
4096 x 2160@30Hz
Max Resolution (DP)‡
4096 x 2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡
4096 x 2304@60Hz
DirectX* Support
12
OpenGL* Support
4.5
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Clear Video HD Technology
Yes
Intel® Clear Video Technology
Yes
# of Displays Supported ‡
3
Device ID
0x9BC5
Expansion Options
Scalability
1S Only
PCI Express Revision
3.0
PCI Express Configurations ‡
Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes
16
Package Specifications
Sockets Supported
FCLGA1200
Max CPU Configuration
1
Thermal Solution Specification
PCG 2015C
TJUNCTION
100°C
Package Size
37.5mm x 37.5mm
Advanced Technologies
Intel® Optane™ Memory Supported ‡
Yes
Intel® Thermal Velocity Boost
No
Intel® Turbo Boost Max Technology 3.0 ‡
Yes
Intel® Turbo Boost Technology ‡
2.0
Intel® Hyper-Threading Technology ‡
Yes
Intel® Transactional Synchronization Extensions
No
Intel® 64 ‡
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States
Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies
Yes
Intel® Identity Protection Technology ‡
Yes
Security & Reliability
Intel vPro® Eligibility ‡
Intel vPro® Platform
Intel® AES New Instructions
Yes
Secure Key
Yes
Intel® Software Guard Extensions (Intel® SGX)
Yes with Intel® ME
Intel® OS Guard
Yes
Intel® Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡
Yes
Intel® Boot Guard
Yes
Intel® Stable IT Platform Program (SIPP)
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
