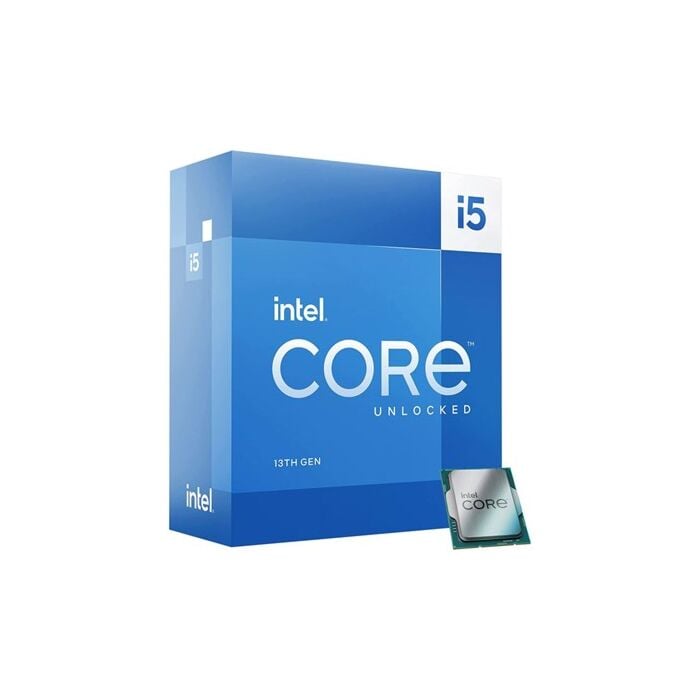

Intel 13th Generation Core i5 - 13600K (2.6 Ghz Turbo Boost upto 5.1 Ghz, 24MB Intel Smart Cache) Processor

CPU Specifications

• Total Cores14
• # of Performance-cores6
• # of Efficient-cores8
• Total Threads20
• Max Turbo Frequency5.10 GHz
• Performance-core Max Turbo Frequency5.10 GHz
• Efficient-core Max Turbo Frequency3.90 GHz
• Performance-core Base Frequency3.50 GHz
• Efficient-core Base Frequency2.60 GHz
• Cache24 MB Intel® Smart Cache
• Total L2 Cache20 MB
• Processor Base Power125 W
• Maximum Turbo Power181 W

Supplemental Information

• Marketing Status Launched
• Launch DateQ4'22
• Embedded Options AvailableNo
• Datasheet View now

Memory Specifications

• Max Memory Size (dependent on memory type)128 GB
• Memory Types Up to DDR5 5600 MT/s
  Up to DDR4 3200 MT/s
• Max # of Memory Channels2
• Max Memory Bandwidth89.6 GB/s
• ECC Memory Supported ^‡Yes

Processor Graphics

• Processor Graphics ^‡Intel® UHD Graphics 770
• Graphics Base Frequency300 MHz
• Graphics Max Dynamic Frequency1.50 GHz
• Graphics Output DP 1.4b, DP 1.4a, HDMI 2.1
• Execution Units32
• Max Resolution (HDMI)^‡4096 x 2160 @ 60Hz
• Max Resolution (DP)‡7680 x 4320 @ 60Hz
• Max Resolution (DP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
• DirectX* Support12
• OpenGL* Support4.5
• OpenCL* Support3.0
• Multi-Format Codec Engines2
• Intel® Quick Sync Video Yes
• Intel® Clear Video HD Technology Yes
• # of Displays Supported ^‡4
• Device ID0xA780

Expansion Options

• Direct Media Interface (DMI) Revision4.0
• Max # of DMI Lanes8
• Scalability1S Only
• PCI Express Revision5.0 and 4.0
• PCI Express Configurations ^‡Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes20

Package Specifications

• Sockets SupportedFCLGA1700
• Max CPU Configuration1
• T_JUNCTION100°C

Advanced Technologies

• Intel® Gaussian & Neural Accelerator3.0
• Intel® Thread Director Yes
• Intel® Deep Learning Boost (Intel® DL Boost) Yes
• Intel® Speed Shift Technology Yes
• Intel® Turbo Boost Max Technology 3.0 ^‡No
• Intel® Turbo Boost Technology ^‡2.0
• Intel® Hyper-Threading Technology ^‡Yes
• Intel® 64 ^‡Yes
• Instruction Set64-bit
• Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States Yes
• Enhanced Intel Speed Step® Technology Yes
• Thermal Monitoring Technologies Yes
• Intel® Volume Management Device (VMD)Yes

Security & Reliability

• Intel vPro® Eligibility ^‡Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
• Intel® Threat Detection Technology (TDT)Yes
• Intel® Active Management Technology (AMT) ^‡Yes
• Intel® Standard Manageability (ISM) ^‡Yes
• Intel® Remote Platform Erase (RPE) ^‡Yes
• Intel® One-Click Recovery ^‡Yes
• Intel® Hardware Shield Eligibility ^‡Yes
• Intel® Control-Flow Enforcement Technology Yes
• Intel® Total Memory Encryption - Multi Key Yes
• Intel® AES New Instructions Yes
• Secure Key Yes
• Intel® OS Guard Yes
• Intel® Trusted Execution Technology ^‡Yes
• Execute Disable Bit ^‡Yes
• Intel® Boot Guard Yes
• Mode-based Execute Control (MBEC)Yes
• Intel® Stable IT Platform Program (SIPP)Yes
• Intel® Virtualization Technology with Redirect Protection (VT-rp) ^‡Yes
• Intel® Virtualization Technology (VT-x) ^‡Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ^‡Yes
• Intel® VT-x with Extended Page Tables (EPT) ^‡Yes
