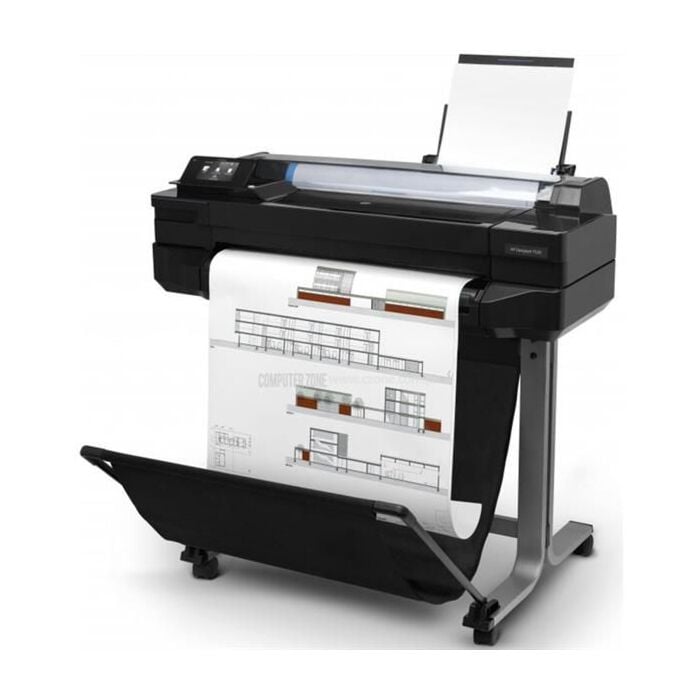

HP Designjet T520 36-in ePrinter

Model size

914 mm

Functions

Print

Speed specifications

Print time color image ISO N5 (best, metric A1 glossy paper)

11.4 min/page

Print time color image ISO N5 (normal metric A1 glossy paper)

9.1 min/page

Print time color image ISO N5 (draft, A1 coated paper)

1.1 min/page

Print time color image ISO N5 (normal metric A1 coated paper)

3.8 min/page

Print time line drawing (economode, A1 plain paper)

35 sec/page

Print speed line drawing (economode, A1 plain paper)

70 A1 prints per hour[1]

Memory specifications

Memory

1 GB

Internal Storage

None

Technical specifications

Print quality (best)

Color: Up to 2400 x 1200 optimized dpi

Black: Up to 2400 x 1200 optimised dpi from 1200 x 1200 input dpi and optimisation for photo paper selected

Print technology

HP Thermal Inkjet

Ink types

Dye-based (C, M, Y)

pigment-based (K)

Non-printable area (cut-sheet)

5 x 17 x 5 x 5 mm

Guaranteed minimum line width

0.07 mm (ISO/IEC 13660:2001(E))[3]

Line accuracy

±0.1%[2]

Paper handling

Finished output handling

Sheet feed

roll feed

input tray

media bin

automatic cutter

Media weights, recommended

60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (input tray)

Media sizes standard (metric rolls)

210 to 914-mm wide sheets

279 to 914-mm rolls

Media sizes, custom

Input tray: 210 x 279 to 330 x 482 mm

manual feed: 330 x 482 to 914 x 1897 mm

roll: 279 to 914 mm

Roll external diameter

100 mm

Media thickness

Up to 0.3 mm

Connectivity

HP ePrint capability

Yes

Printing path

Printer driver, HP DesignJet Print & Share, HP Instant Printing, Apple AirPrint

Connectivity, standard

Fast Ethernet (100Base-T)

Hi-Speed USB 2.0 certified

Wi-Fi

Print languages

HP-GL/2, HP-RTL, HP PCL 3 GUI, JPEG, CALS G4

Power and operating requirements

Power consumption

< 35 watts (printing), < 0.3 watts (standby)

Operating temperature range

5 to 40ºC

Operating humidity range

20 to 80% RH

Dimensions and weight

Dimensions (W x D x H)

1292 x 530 x 932 mm

Weight

39.2 kg
