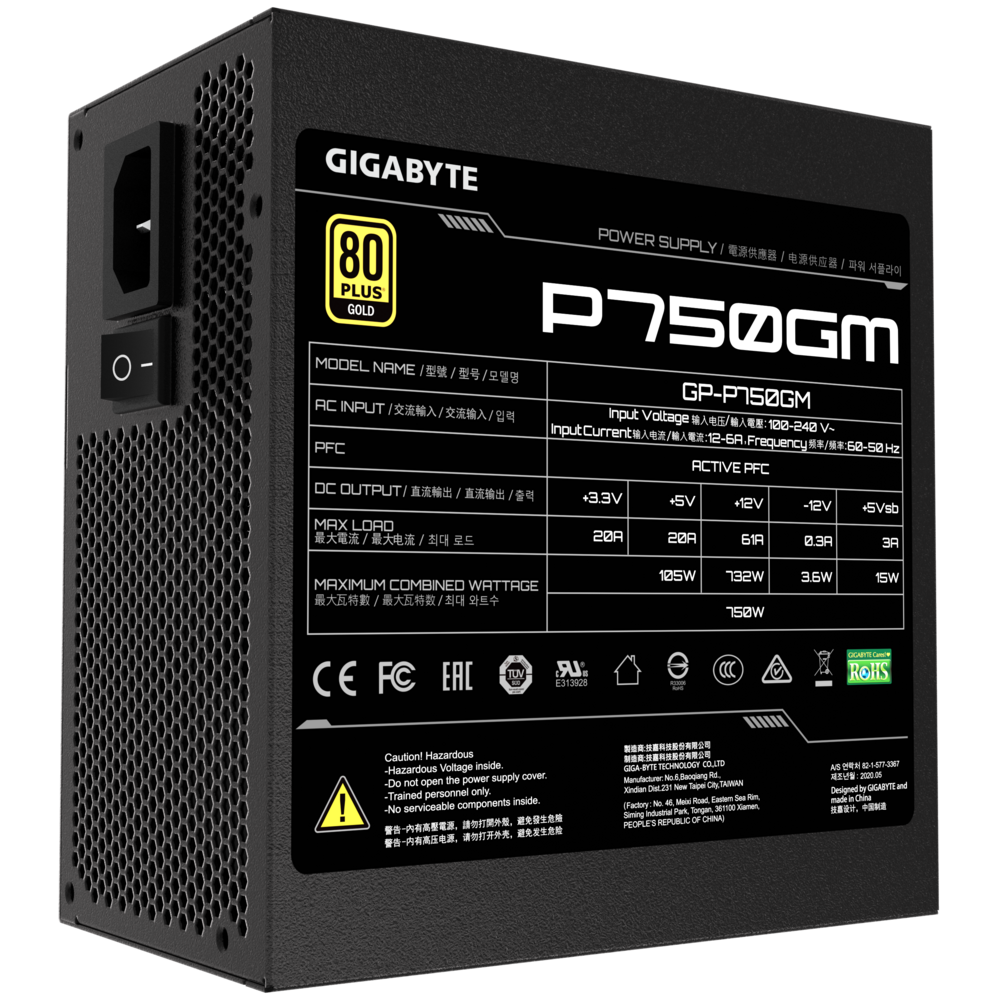

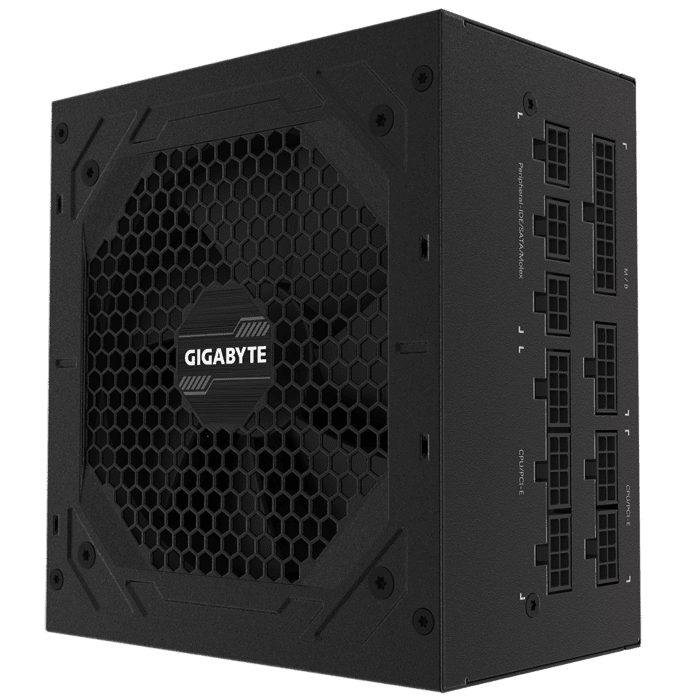

Gigabte GP-P750GM 750W ATX 12V 80 PLUS GOLD Certified Full Modular Active PFC Power Supply

Specification:

• Model:
  GP-P750GM
• Type:
  Intel Form Factor ATX 12V v2.31
• PFC:
  Active PFC (>0.9 typical)
• Input Voltage:
  100-240 Vac (full range)
• Input Current:
  12-6 A
• Input Frequency:
  60-50 Hz
• Output Capacity:
  750W
• Dimension:
  150 x 140 x 86 mm


• Fan Type:
  120mm Hydraulic Bearing ( HYB ) fan
• 80 PLUS:
  Gold
• Efficiency:
  90% at typical load
• MTBF:
  >100,000 hours
• Protection:
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal:
  100-500ms
• Hold Up Time:
  >16ms
• Cable Type:
  Flat, All black
• Connectors:
  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2 :
  4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
  500mm+120mm+120mm+120mm *1
