GP-AP850GM
Out of stock

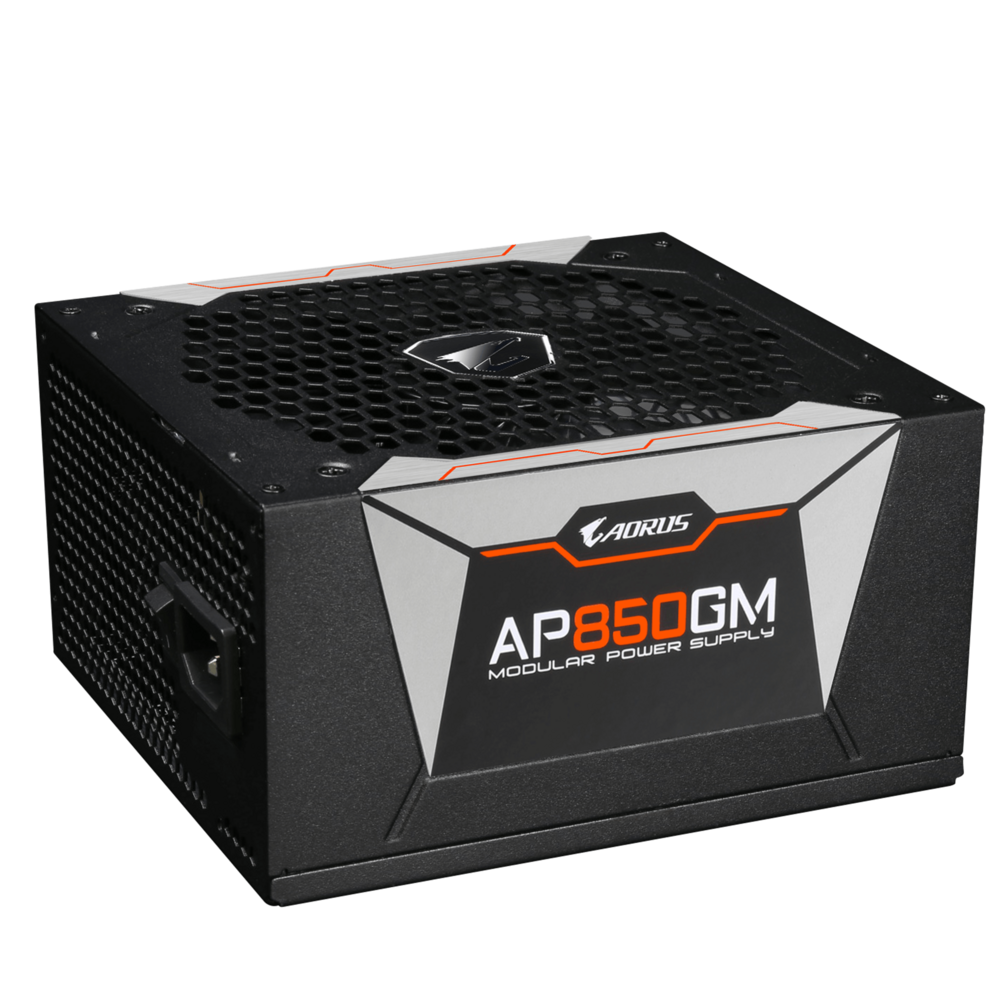

Gigabyte GP-AP850GM Aorus P850W 80 Plus Gold Certified Fully Modular with Smart Fan Function & Power Protection Power Supply
Rs. 25,500.00
Features:
- Fully Modular Design
- High quality 100% Japanese Capacitors
- 135mm 2 ball bearing smart fan with fan stop function
- 80 PLUS Gold certified: above 90% efficiency at 50% load
- Single +12V rail
- OCP/OTP/OVP/OPP/UVP/SCP protection
Specification:
- Model:GP-AP850GM
- Type:Intel Form Factor ATX 12V v2.31
- PFC:Active PFC (>0.9 typical)
- Input Voltage:100-240 Vac (full range)
- Input Current:10A
- Input Frequency:47-63 Hz
- Output Capacity:850W
- Dimension:150 x 160 x 86mm
- Fan Type:135mm Double ball bearing fan
- 80 PLUS:Gold
- Efficiency:90% at typical load
- MTBF:>100,000 hours
- Protection:OVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal:100ms ~ 150ms
- Hold Up Time:> 16m sec at full load (115V)
- Cable Type:Flat, All black
- Connectors:ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
