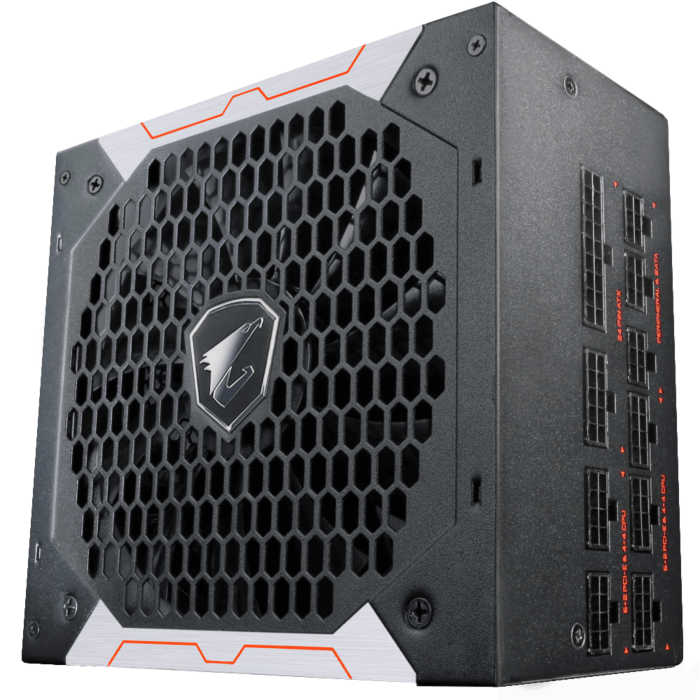

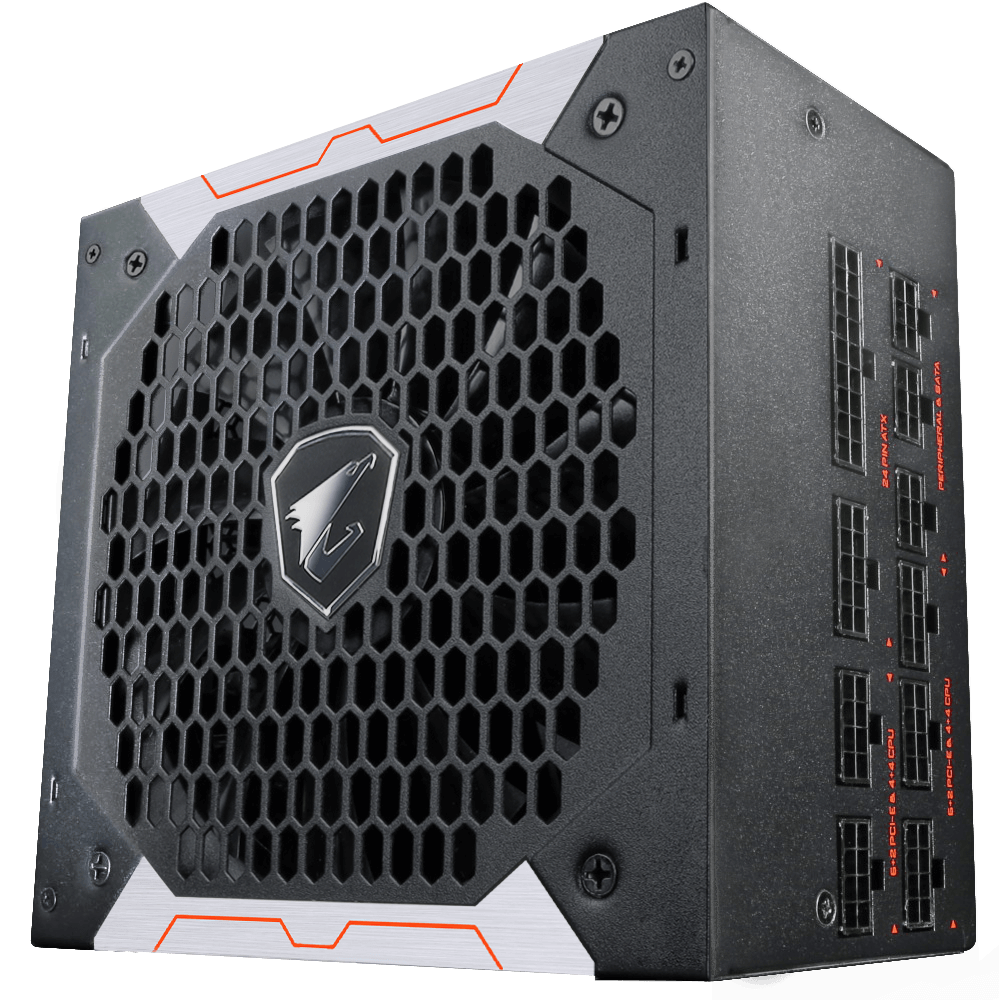

GP-AP750GM Aorus P750W 750W 135mm Smart Fan 80 PLUS Gold Fully Modular ATX Power Supply

Rs. 22,500
In stock
SKU
GP-AP750GM

Features:

  • Fully Modular Design
  • High quality 100% Japanese Capacitors
  • 135mm 2 ball bearing smart fan with fan stop function
  • 80 PLUS Gold certified: above 90% efficiency at 50% load
  • Single +12V rail
  • OCP/OTP/OVP/OPP/UVP/SCP protection





More Information
Brand Giga Byte
Color Black
Warranty 01 Year Local Warranty

Specification:

  • Model:
    GP-AP750GM
  • Type:
    Intel Form Factor ATX 12V v2.31
  • PFC:
    Active PFC (>0.9 typical)
  • Input Voltage:
    100-240 Vac (full range)
  • Input Current:
    10A
  • Input Frequency:
    47-63 Hz
  • Output Capacity:
    750W
  • Dimension:
    150 x 160 x 86mm
  • Fan Type:
    135mm Double ball bearing fan
  • 80 PLUS:
    Gold
  • Efficiency:
    90% at typical load
  • MTBF:
    >100,000 hours
  • Protection:
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal:
    100ms ~ 150ms
  • Hold Up Time:
    > 16m sec at full load (115V)
  • Cable Type:
    Flat, All black
  • Connectors:
    ATX/MB 20+4 Pin x 1 : 650mm
    CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
    PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1
    SATA x6 + 4 Pin Peripheral x2 :
    550mm+100mm+100mm+100mm*1
    450mm+100mm+100mm+100mm *1
    4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
    4 Pin Floppy x 1 : 100mm
