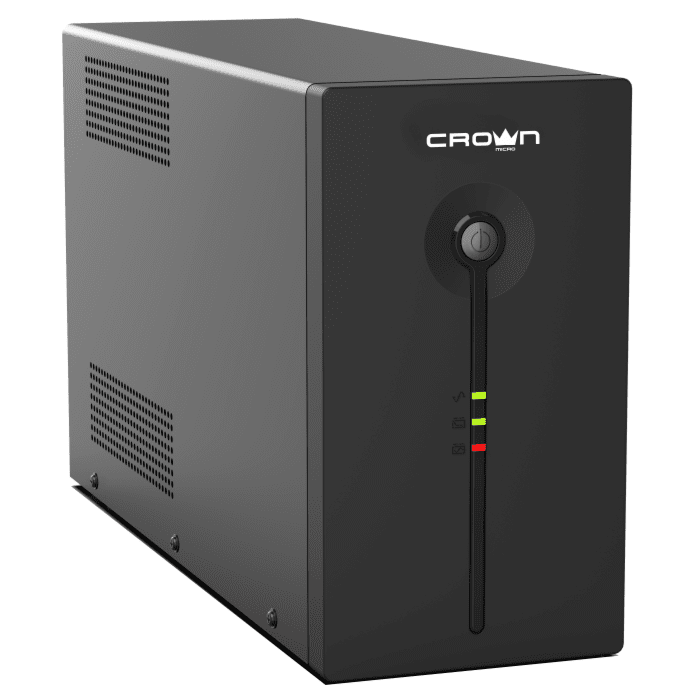

Crown UPS CMUS-1500 M 1500va/900watts with Built-in battery Software & 01 Year Ups & 06 months Battery Warranty
Features:
- Line Interactive Technology
- Pure Sine Wave UPS
- LED display or LCD display for option
- Micro processor-based digital control
- Boost and buck AVR for voltage stabilization
- Frequency adaptive
- Humanized alaram system
- Automatically diagnose when starts
- Cold start
- Auto restart while AC is recovering
- Intelligent battery management
- Surge Protection overload and over voltage
- Automatically charging battery at UPS off mode
- Shutdown when no load connected at battery mode(optional for LCD mode)
- Optional RS232/USB communication port and RJ11/RJ45 protection
- With management software for windows included
Specification:-
INPUT:-
Voltage: 170-270Vac ± 10%
Fraquency: 50/60Hz+1%(Auto Sensing)
OUTPUT:-
Voltage: 100V/110/120AC+10% or 220V/230V/240VAC +10%
Frequency: 50/60Hz+1% (Auto Sensing)
Power Factor: 0.6/0.7/0.8
Waveform: Pure sine wave
Crest Factor: 3:1
Transfer Time: Typical 4-6ms
BATTERY:-
DC Voltage: 24 V
Configuration: 2x12V/7.0AH/9.0AH
Typical Recharge Time: 4-6 hours
Back-up time: 10 minutes backup time or higher on 70% load
PROTECTION:-
Full Protection: Short circuit, Battery over-charge and over-discharge protection
Humidity: 20~90RH@0~40'C(non-condensing
Noise Level: <45db(1m)
MANAGEMENT:-
USB/RS-232/SNMP(Option) Short circuit, Battery over-charge, and over-discharge protection
PHYSICAL:-
Plastic case:
Net/GrossWeight(kg): 10.7/11/2
Dimmension(mm)WxDxH: 140x345x170
Metal case:
Net/GrossWeight(kg): 12.6/13.4
Dimmension(mm)WxDxH: 125x320x110
Metal case:
Net/GrossWeight(kg): 15.7/16.3
Dimmension(mm)WxDxH: 440x310x132
