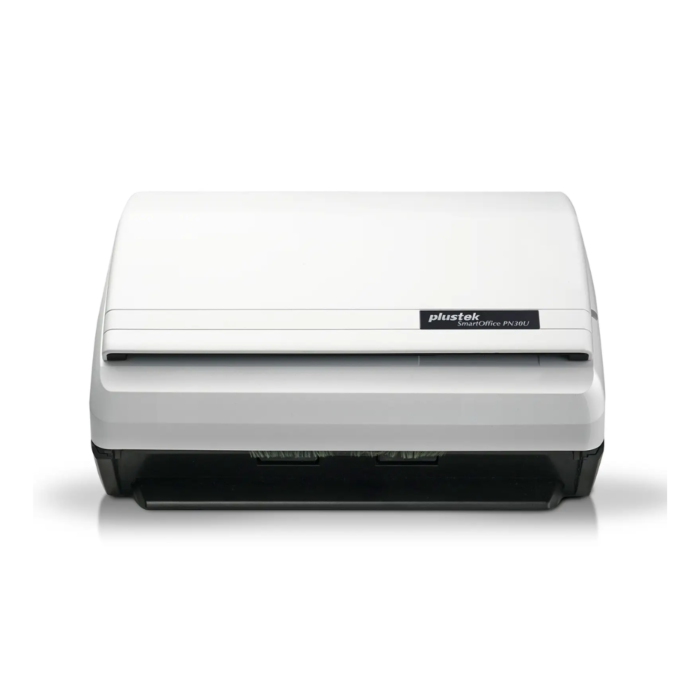

Plustek Scanner PN30U Smart Office Document

Rs. 45,000
In stock
SKU
Plustek PN30U scanner
More Information
Brand Plustek
Color White
Warranty 01 Year Brand Warranty
Image Sensor:- CIS x 2

Light Source:- LED

Optical Resolution:- 600 dpi

Hardware Resolution:- 600 x 600 dpi

Scan Modes:-

Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit

ADF Capacity:-

50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
20 sheets (Business Cards).
Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight.

Scanning Speed ( ADF ):-

30 ppm/ 60 ipm (Grayscale mode, 200 & 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (B&W mode, 200 & 300 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 200 & 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory.

Scanning Area (W x L):-

Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)

Acceptable Paper Sizes (W x L):-

Max: 220 x 5080 mm (8.66” x 200”)
Min: 63.5 x 50.8 mm (2.5” x 2”)

Acceptable Paper Weight (Thickness):- 50 to 105 g/㎡ (14 to 28 Lbs)

Multi-feed Detection:- With ultrasonic technology

Daily Duty Scan ( Sheets ):- 4,000

Roller Lifetime (Scans)- 300,000

Pad Lifetime (Scans):- 50,000

Action Button:-

3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable.

Power Supply:- USB Power: 24 Vdc/ 0.75 A

Interface:-

USB 2.0
RJ45 LAN (only support Windows)

Net Weight:- 1.66 Kgs (3.66 Lbs)

Dimensions (W x D x H):- 263 x 128 x 148 mm (10.36" x 5.02" x 5.83")

Protocol:- TWAIN Compliant

OS:-

Windows XP / Vista / 7 / 8 / 10
Mac OS X 10.8.x/ 10.9.x/ 10.10.x/ 10.11.x/ 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.1.x/ 11.2.x

Hardware Requirements:-

PentiumR IV 2.4 GHz processor
DVD-ROM Driver
One available USB 2.0 Port
1GB RAM (2GB or higher recommended)
2GB free HDD space (3GB or larger recommended)

Bundled Software:-

Plustek DocAction
Plustek DocTWAIN
Plustek MacAction
Plustek ICA
Scanner Search tool

Built-in OCR:-

Plustek OCR (For Windows)
(Powered by ABBYY® FineReader®)
Plustek DocOCR (For Mac)
