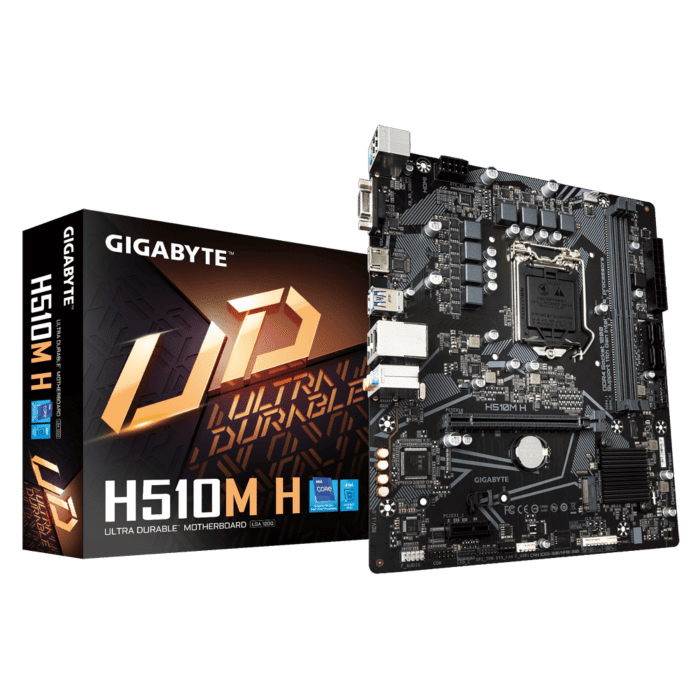

Gigabyte H510M H LGA-1200 Motherboard

Rs. 18,750
Out of stock
SKU
Gigabyte H510M H
KEY FEATURES:

1. Supports 11th and 10th Gen Intel®  Core™ Series Processors
2. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
3. Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
4. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
5. High-Quality Audio Capacitors and Audio Noise
6. Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan
    Headers with FAN STOP
7. GIGABYTE APP Center, Simple and Easy Use
8. Anti-Sulfur Resistors Design

More Information
Brand Giga Byte
Warranty 01 Year Local Warranty
Board Type Desktop Motherboard

Gigabyte H510M H

Intel® H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor,  Smart Fan 6

Specification:

CPU:
LGA1200 package:

1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors /
    Intel® Core™i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
   * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
3. L3 cache varies with CPU

Chipset:

1. Intel® H510 Express Chipset

Memory:

1. 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:
Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x D-Sub port, supporting a maximum resolution of [email protected] Hz
2. 1 x HDMI port, supporting a maximum resolution of [email protected] Hz
    * Support for HDMI 1.4 version and HDCP 2.3.

   (Graphics specifications may vary depending on CPU support.)

Audio:

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device
    advanced settings > Playback
    Device to change the default setting first. Please visit GIGABYTE's website for details
    on configuring the audio software.

LAN:

1. Realtek® GbE LAN chip (1 Gbit/100 Mbit)

Expansion Slots:

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
    install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
    * Supported by 11th Generation processors only.
2. 1 x PCI Express x1 slot (PCIEX1_1)
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

Storage Interface:
Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB:
Chipset:

1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors:

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 4 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper

*All fan headers are subject to support AIO_Pump, Pump and high performance fan with
  the capability of delivering up to
  2A/12V @ 24W.

Back Panel Connectors:

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

I/O Controller:

1. iTE® I/O Controller Chip

H/W Monitoring:

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of
    each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install

Bundled Software:

1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System:

1. Support for Windows 10 64-bit

Form Factor:

1. Micro ATX Form Factor; 24.4cm x 21.0cm.
