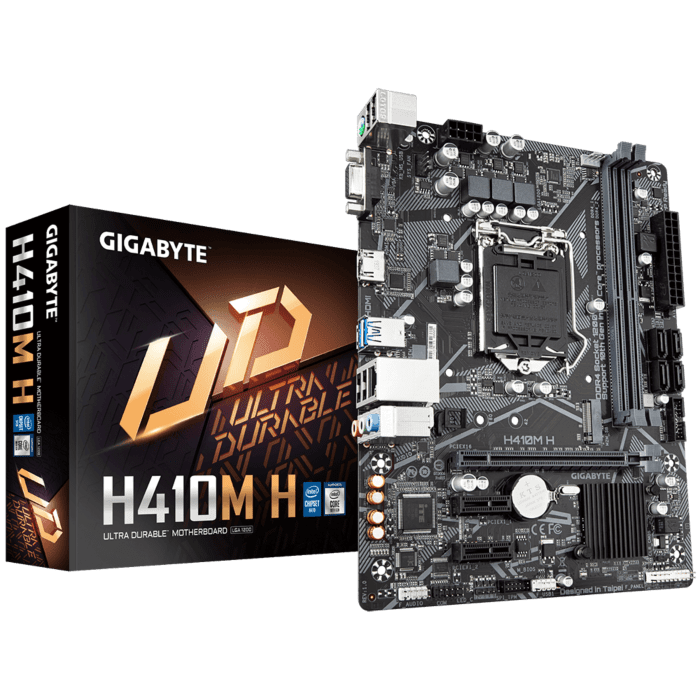

Gigabyte H410M H
Key Features:
Intel® H410 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5
1. Supports 10th Gen Intel®Core™ Processors
2. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
3. 8-Channel HD Audio with High-Quality Audio Capacitors
4. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
5. Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
6. GIGABYTE APP Center, Simple and Easy Use
7. Anti-Sulfur Resistors Design
Specification:
CPU:
1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/
Intel®Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
2. L3 cache varies with CPU
Chipset:
1. Intel® H410 Express Chipset
Memory:
1. Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics:
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Audio:
1. Realtek® audio codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN:
1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots:
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
Supports up to ASPM L1.2 power management protocols.
Storage Interface:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
2. 4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
USB:
Chipset:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors:
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 4 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 1 x serial port header
14. 1 x Clear CMOS jumper
Back Panel Connectors:
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x HDMI port
4. 2 x USB 3.2 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks
I/O Controller:
1. iTE® I/O Controller Chip
H/W Monitoring:
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
1. Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each
application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Bundled Software:
1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System:
1. Support for Windows 10 64-bit
Form Factor:
1. Micro ATX Form Factor; 22.6cm x 17.4cm.
