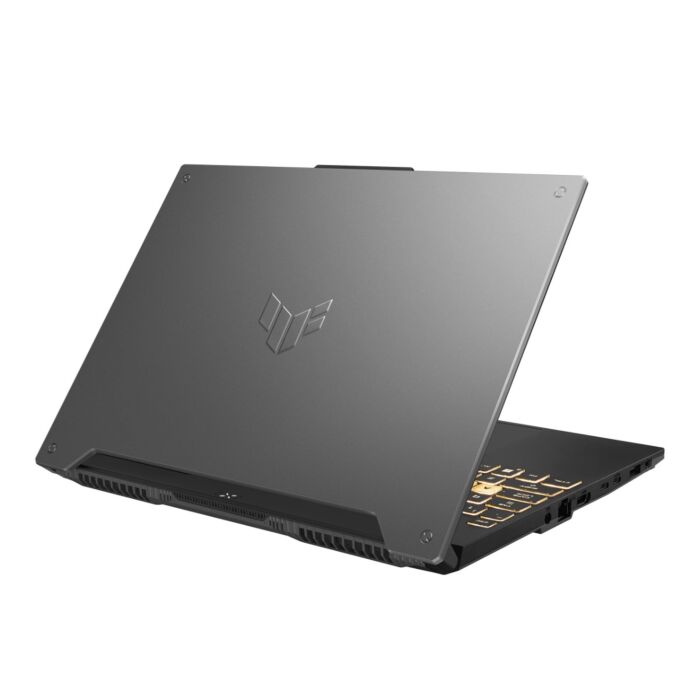

Asus Tuf F15 FX507ZV Gaming Laptop - 12th Generation Core i7 12700H Processor 16GB 512GB SSD 8GB NVIDIA RTX4060 GDDR6 GC 15.6" Full HD 1080p IPS Anti-glare 144Hz Display 1-Zone RGB Backlit KB W11 Home (Mecha Grey, NEW)
| Brand | Asus |
|---|---|
| Generation | 12th Generation |
| Processor Type | 12th Generation Core i7 12700H Processor |
| Processor Speed | 3.50 Ghz Turbo Boost upto 4.70 Ghz (14 Cores - 20 Threads, 24 MB Intel® Smart Cache) |
| Installed RAM | 16GB |
| Type of memory | DDR4-3200 SO-DIMM x 2, Max Capacity:32GB, Support dual channel memory |
| Hard drive size | 512GB |
| Hard drive speed | PCIe® 4.0 NVMe™ M.2 SSD |
| Optical Drive | - |
| Type of optical drive | - |
| SSD | 512 GB SSD |
| Type of harddrive | PCIe® 4.0 NVMe™ M.2 SSD |
| Graphic Series | 8-GB NVIDIA GeForce RTX4060 |
| Dedicated graphics | Yes |
| Graphics memory | NVIDIA® GeForce RTX™ 4060 Laptop GPU, 2420MHz* at 140W (2370MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost), 8GB GDDR6 |
| Type of graphics memory | Discrete |
| Switchable graphics | No |
| Graphics processor | Intel |
| Backlight | Yes |
| Screen size | 15.6-inch, FHD (1920 x 1080) 16:9, Value IPS-level, Anti-glare display, sRGB:100%, Adobe:75.35%, Refresh Rate:144Hz, G-Sync, MUX Switch + NVIDIA® Advanced Optimus 15.6-inch, WQHD (2560 x 1440) 16:9, IPS-level, Anti-glare display, DCI-P3:100%, Refresh Rate |
| Screen surface | 15.6-inch, FHD (1920 x 1080) 16:9, Value IPS-level, Anti-glare display, sRGB:100%, Adobe:75.35%, Refresh Rate:144Hz, G-Sync, MUX Switch + NVIDIA® Advanced Optimus 15.6-inch, WQHD (2560 x 1440) 16:9, IPS-level, Anti-glare display, DCI-P3:100%, Refresh Rate |
| Screen resolution | 1920 x 1080p |
| Touchscreen | No |
| Color | Black |
| RAM | 16 GB |
| Operating System | Windows 10 Pro |
| Weight | 2.20 Kg (4.85 lbs) |
| Fingerprint Reader | No |
| Numeric keyboard | Yes |
| Backlit keyboard | Backlit Chiclet Keyboard 1-Zone RGB Touchpad |
| Bluetooth | Bluetooth® 5.2 Wireless Card (*Bluetooth®) |
| LAN | Yes |
| Speed | 1x RJ45 LAN port |
| Wireless/Wifi | Yes |
| Type | Wi-Fi 6(802.11ax) (Dual band) 2*2 |
| Condition | New |
| USB | 2x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 2 Type-C support DisplayPortâ„¢ / power delivery / G-SYNC 1x RJ45 LAN port 1x Thunderboltâ„¢ 4 support DisplayPortâ„¢ |
| HDMI | HDMI 2.1 FRL |
| Camera | 720P HD camera |
| Operating system (Primary) | Windows 11 Home |
| Manual | https://www.asus.com/laptops/for-gaming/tuf-gaming/asus-tuf-gaming-f15-2023/techspec/ |
| Product page | https://www.asus.com/laptops/for-gaming/tuf-gaming/asus-tuf-gaming-f15-2023/techspec/ |
| Warranty | International |
Asus Tuf F15 FX507ZV Core i7 Laptop in Pakistan
The Asus TUF (The Ultimate Force) F series of gaming laptops is known for its exceptional durability, captivating gaming aesthetic, and a compelling combination of high performance and value.
The latest iteration of these laptops features the newest Alder Lake series of CPUs from Intel, paired with the 4000 series of GPUs from Nvidia.
The central processing unit designated for the Asus Tuf F15 FX507ZV is the Intel Core i7-12700H, featuring a robust total core count of 12 cores and 20 threads. This configuration enables it to manage a wide range of multitasking applications efficiently.
The 12 cores consist of 6 high-performance cores and 8 efficient cores. When the system is not under a heavy load, the efficiency cores take precedence. The processor is equipped with a generous Intel Smart Cache of 24 MB.
The performance cores can reach a boost clock frequency of 3.50 GHz. At this stage of optimization and configuration, the power consumption is approximately 45 watts. If overclocked in the future, the power draw can increase to 70 watts, reaching a total of 115 watts.
In terms of memory support, this CPU is compatible with both DDR5 and DDR4, offering clocked speeds of 4800 MT/s and 3200 MT/s, respectively.
Supporting the visual and gaming performance of the notebook is our GPU, the NVIDIA RTX 4060 Laptop GPU, boasting an initial clock speed of 2370 MHz and a TGP (Total Graphics Power) of 115 watts.
It also offers the potential for overclocking, allowing you to achieve an additional 50 MHz in clock speed, though this will increase power consumption by 25 watts.
The Asus Tuf F15 FX507ZV is equipped with 8GB of GDDR6 graphical memory. This configuration provides the machine with ample power to handle demanding applications with high graphical intensity, as well as, of course, a wide range of games.
A 16 GB memory kit manages the storage and memory of the system, clocked at 3200 MT/s, and a 512 GB PCIe Gen 4.0 NVMe M.2 Solid State Drive. Both of these components also support upgrades.
In the case of memory, it can be expanded to 32 GB in a dual configuration. As for storage, there are two PCIe Gen 4 M.2 slots that can work together to accommodate additional storage options.
The Asus Gaming Laptop is equipped with a 15.6-inch Full HD 1080 IPS panel with a 16:9 aspect ratio. This display features an anti-glare surface, offering 100% coverage of the sRGB color space and 75.35% coverage of the Adobe color space. It boasts a refresh rate of 144Hz and supports Nvidia's G-Sync, MUX Switch, and NVIDIA® Advanced Optimus technologies.
The power sector of the device includes a 4-cell 4S1P Lithium-Ion battery with a robust capacity of 90 Whr.
This battery can be charged using a 240W AC adapter with an output of 20V DC, 12A, and 240W. The input range for the adapter is 100~240V AC at 50/60Hz, making it a universal power solution.
It is constructed entirely from plastic, which provides a suitable framework for its robust cooling system, capable of efficiently functioning under heavy workloads.
As for the keyboard, it features a Backlit Chiclet Keyboard with a Single Zone RGB lighting located above a touchpad.
Meeting the need for video conferencing and webcam usage, it is equipped with a 720p camera located at the top bezel.
Built-in array microphones and a 2-speaker complement this camera. Furthermore, it incorporates AI noise-canceling technology and hi-res certification and supports Microsoft Cortana for both near-field and far-field voice commands.
A good gaming machine should be able to accommodate a lot of external devices, which in our case includes:
- 1x 3.5mm Combo Audio Jack
- 1x HDMI 2.1 FRL
- 2x USB 3.2 Gen 1 Type-A ports
- 1x USB 3.2 Gen 2 Type-C port with the support of DisplayPort/power delivery/ G-SYNC
- 1x RJ45 LAN port
- 1x Thunderbolt 4 with the support of DisplayPort
Brand New Asus Tuf F15 FX507ZV 12th Generation Core i7 12700H Nvidia RTX 4060 Latest Price in Pakistan is Rs. 350,000.
